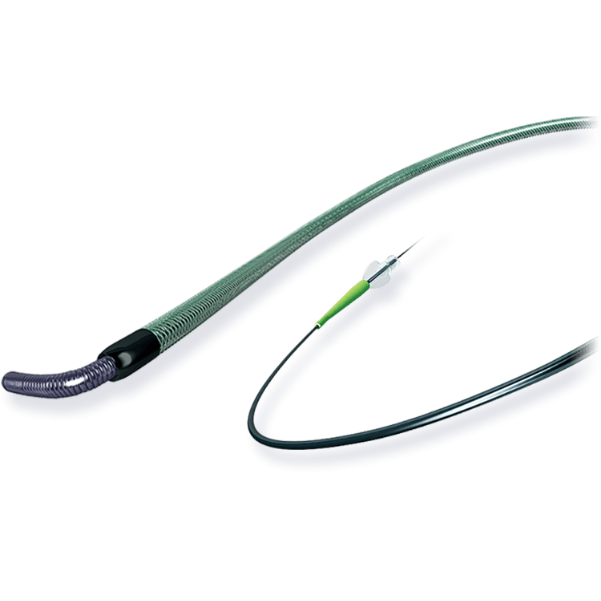

ASAHI Tellus

ASAHI Tellus

Manufacturer: ASAHI INTECC

Category: Microcatheter

  • The stable tip supports the guide wire for vessel selectivity
  • Proprietary composite braiding prevents kinking and stretching
  • The 0.64mm ( 0.025inch ) inner diameter at the proximal end assures a high flow rate
Category: Tags: , ,

Description

ASAHI Tellus

  • The stable tip supports the guide wire for vessel selectivity
Guide wire can advance safely in bend angles.
The risks linked to guide wire manipulation are increased.

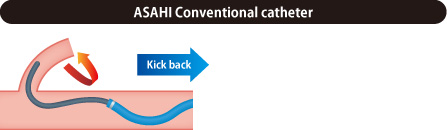

Microcatheter is stable even when guide wire is pulled out.
The force accumulated into the shaft is released and the microcatheter might bounce out of the target anatomy.



















  • Proprietary composite braiding prevents kinking and stretching
Appropriate shaft rigidity and resistance allow the microcatheter to proceed into the vasculature without bending at tortuous sites.
Flexible and stretchable microcatheter which bends in a tortuous course does not advance when pushed further.

















  • The 0.64mm ( 0.025inch ) inner diameter at the proximal end assures a high flow rate
ASAHI Tellus assures image quality also at low pressure. It maintains stability and does not bounce back.

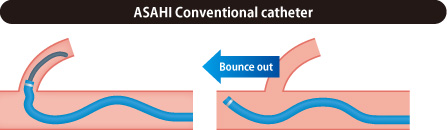

Conventional catheter with weak flow yields to the pressure, becomes unstable and it is prone to bounce back into the vessel.



















Specifications

Product Catalog No. Usable length Tip shape Accessory
ASAHI Tellus TLS105-16K 105cm Straight Stylet
TLS105-16AK 105cm Angled
TLS125-16K 125cm Straight
TLS125-16AK 125cm Angled
TLS150-16K 150cm Straight
TLS125-16SLK 125cm Screw left
TLS125-16SRK 125cm Screw right

“ASAHI”, “ASAHI Tellus”, “Masters PARKWAY” and “Veloute” are trademarks or registered trademarks of ASAHI INTECC CO., LTD. in Japan and other countries.
