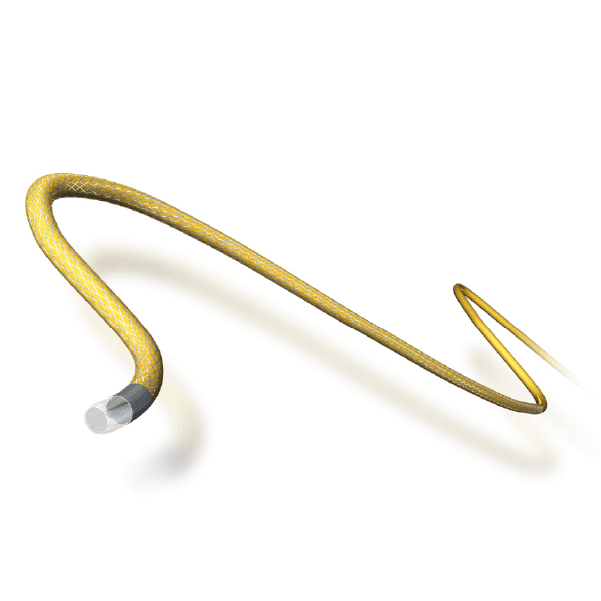

ASAHI Masters PARKWAY HF and HF Kit

ASAHI Masters PARKWAY HF and HF Kit

Manufacturer: ASAHI INTECC

Category: Micorcatheter and Guide Wire Pre-loaded Microcatheter

  • Radius tip and small profile for distal accessability.
  • Large ID for high volume injection and smooth delivery of embolic materials.
  • Tungsten braiding for lumen integrity and visibility.
  • Pre-shaped tip.
Category: Tags: , , ,

Specifications

Flow rate

Product Usable length Contrast Iodine content Flow rate Dead volume
ASAHI
Masters PARKWAY
HF		 105cm Iopamidol 300(mg/ml) 5.1(ml/sec) / 6895kPa (1000psi) 0.62ml
370(mg/ml) 2.7(ml/sec) / 6895kPa (1000psi)
125cm 300(mg/ml) 4.4(ml/sec) / 6895kPa (1000psi) 0.69ml
370(mg/ml) 2.4(ml/sec) / 6895kPa (1000psi)
150cm 300(mg/ml) 3.8(ml/sec) / 6895kPa (1000psi) 0.79ml
370(mg/ml) 2.0(ml/sec) / 6895kPa (1000psi)

ASAHI Masters PARKWAY HF

Product Catalog No. Usable
length		 Length O.D. of distal shaft /
O.D. of proximal shaft		 Shaft I.D. Max. guide wire Hydrophilic
coating length		 Tip shape Max.
pressure
ASAHI
Masters PARKWAY
HF		 WMST105-27HF 105cm 112cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 65cm Straight 6895kPa
(1000psi)
WMST125-27HF 125cm 132cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 65cm Straight 6895kPa
(1000psi)
WMST150-27HF 150cm 157cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 100cm Straight 6895kPa
(1000psi)

ASAHI Masters PARKWAY HF Kit

Product Catalog No. Micro catheter
usable length		 Micro catheter
length		 O.D. of distal shaft /
O.D. of proximal shaft		 Shaft I.D. Guide wire
shaft O.D.		 Guide wire
length		 Tip shape of
guide wire		 Max.
pressure
ASAHI
Masters PARKWAY
HF KIT		 WMST105-27HFK 105cm 112cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 140cm Angled 80° 6895kPa
(1000psi)
WMST125-27HFK 125cm 132cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 160cm Angled 80° 6895kPa
(1000psi)
WMST105-27HFKM 105cm 112cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 140cm Multi curve 6895kPa
(1000psi)
WMST125-27HFKM 125cm 132cm 0.88mm (2.6Fr)
0.93mm (2.8Fr)		 0.69mm
(0.027inch)		 0.53mm
(0.021inch)		 160cm Multi curve 6895kPa
(1000psi)
