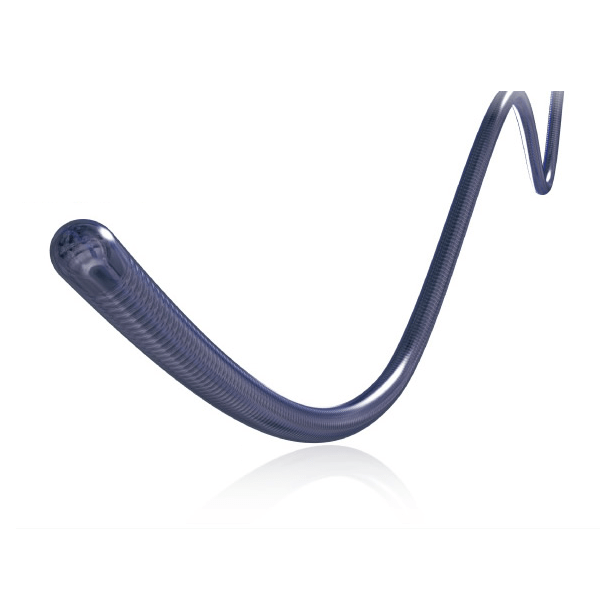

ASAHI Meister 16
Manufacturer: ASAHI INTECC
Category: Peripheral Vascular Guide Wire
- Torqueable

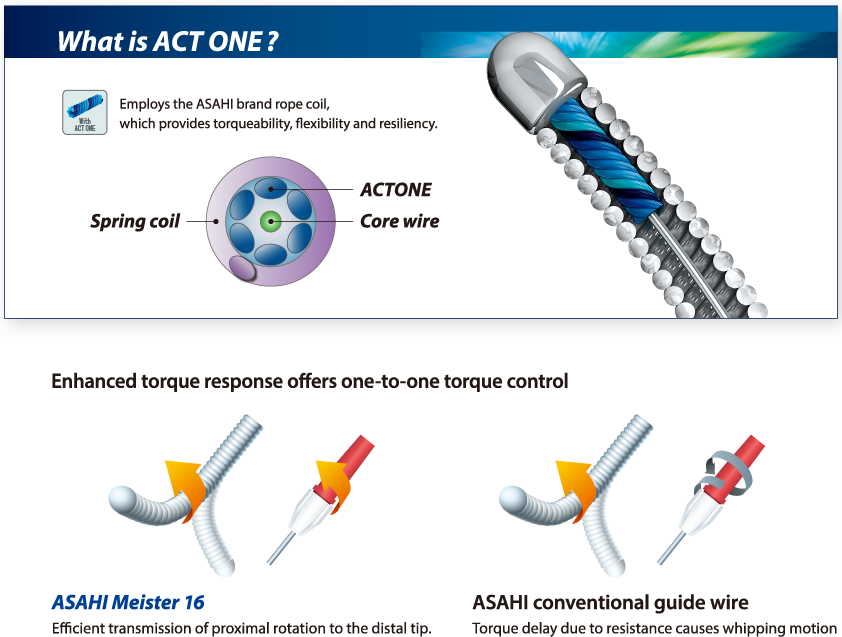

Precise torqueability with ACT ONE (One to one torque)
- Shapeable
Stainless steel core allows easy tip shaping and re-shaping compared to nitinol core
- Trackable
Polymer jacket and well-designed shaft enhance tracking ability
Description
ASAHI Meister 16
Thanks to pre-shaped ACT ONE, ASAHI Meister 16 has a good shape retention
Specifications
| Product | Catalog No. | Usable length | Shaft O.D. | Radiopaque length | Polymer jacket length | Hydrophilic coating length | Tip shape |
|---|---|---|---|---|---|---|---|
| ASAHI Meister16 | WAMS-165-1645 | 165cm | 0.41mm (0.016inch) | 5cm | 160cm | 160cm | Angled 45° |
| WAMS-180-1645 | 180cm | 0.41mm (0.016inch) | 5cm | 175cm | 175cm | Angled 45° | |
| WAMS-165-16WA | 165cm | 0.41mm (0.016inch) | 5cm | 160cm | 160cm | Angled double | |
| WAMS-180-16WA | 180cm | 0.41mm (0.016inch) | 5cm | 175cm | 175cm | Angled double | |
| WAMS-165-16ST | 165cm | 0.41mm (0.016inch) | 5cm | 160cm | 160cm | Round curve | |
| WAMS-180-16ST | 180cm | 0.41mm (0.016inch) | 5cm | 175cm | 175cm | Round curve |
Not all shapes and sizes are available in all markets. Please check availability with your sales representative.
