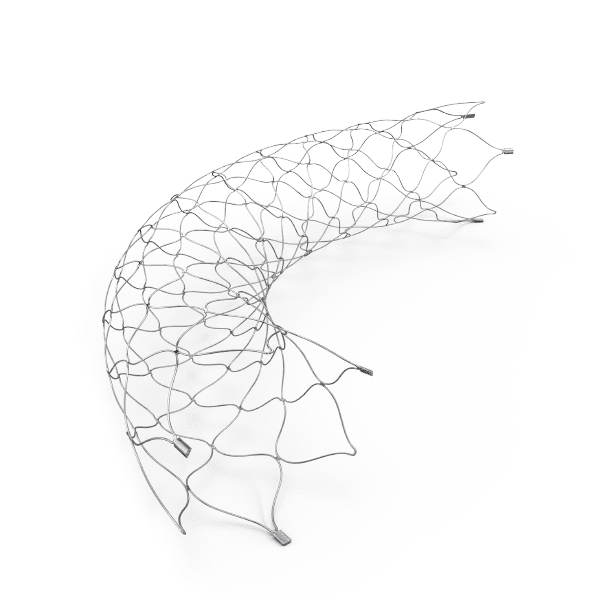

ACCLINO® flex plus Stent
Manufacturer: ACANDIS
Category: Treatment of intracranial aneurysms
- Excellent vessel wall apposition and exceptional conformability
- High visibility
- Treatment of vessel diameters from 1.5 – 7.0 mm
- Up to 5.5 mm stent diameter deliverable through 0.0165” ID microcatheters
- Low thrombogenicity
- Resheathability up to 90 % of its length
* results from In-Vitro Tests
Description
ACCLINO® flex plus Stent
Disclaimer:
Please consult the Instructions for Use for all indications, contraindications, warnings, cautions as well as possible adverse effects. Acandis® products are to be used exclusively by trained medical professionals. Orders are taken only in regions where the product is approved. Please contact an Acandis® representative for product availability.
Specification
| Labelled ACCLINO flex plus Dimension (mm) | Reference Number | Stent Diameter (mm) | Stent Length (mm) | Recommend Vessel Diameter (mm) | Required Microcatheter for Delivery (inch) |
|---|---|---|---|---|---|
| 3.0 x 15 | 01-001122 | 3.0 | 15 | 1.5 – 2.5 | 0.0165 – 0.017 |
| 3.0 x 20 | 01-001123 | 20 | |||
| 3.0 x 25 | 01-001124 | 25 | |||
| 3.0 x 30 | 01-001125 | 30 | |||
| 3.0 x 35 | 01-001126 | 35 | |||
| 3.5 x 15 | 01-001132 | 3.5 | 15 | 1.5 – 3.0 | 0.0165 – 0.017 |
| 3.5 x 20 | 01-001133 | 20 | |||
| 3.5 x 25 | 01-001134 | 25 | |||
| 3.5 x 30 | 01-001135 | 30 | |||
| 3.5 x 35 | 01-001136 | 35 | |||
| 4.0 x 15 | 01-001142 | 4.0 | 15 | 2.5 – 3.5 | 0.0165 – 0.017 |
| 4.0 x 20 | 01-001143 | 20 | |||
| 4.0 x 25 | 01-001144 | 25 | |||
| 4.0 x 30 | 01-001145 | 30 | |||
| 4.0 x 35 | 01-001146 | 35 | |||
| 4.5 x 15 | 01-001152 | 4.5 | 15 | 2.5 – 4.0 | 0.0165 – 0.017 |
| 4.5 x 20 | 01-001153 | 20 | |||
| 4.5 x 25 | 01-001154 | 25 | |||
| 4.5 x 30 | 01-001155 | 30 | |||
| 4.5 x 35 | 01-001156 | 35 | |||
| 5.5 x 20 | 01-001173 | 5.5 | 20 | 3.5 – 5.0 | 0.0165 – 0.017 |
| 5.5 x 25 | 01-001174 | 25 | |||
| 5.5 x 30 | 01-001175 | 30 | |||
| 5.5 x 35 | 01-001176 | 35 | |||
| 6.5 x 20 | 01-001193 | 6.5 | 20 | 4.0 – 6.0 | 0.021 |
| 6.5 x 25 | 01-001194 | 25 | |||
| 6.5 x 30 | 01-001195 | 30 | |||
| 6.5 x 35 | 01-001196 | 35 |
