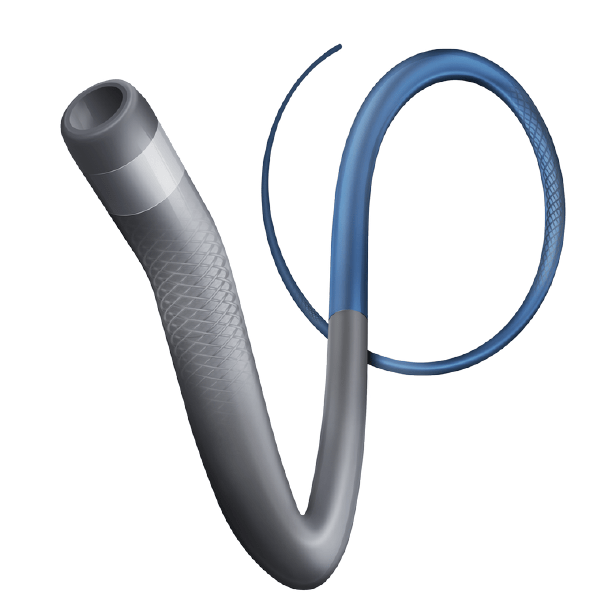

NeuroBridge® Catheter
Manufacturer: ACANDIS
Category: Catheter
- Proximal shaft stiffness for superior pushability
- Precise navigation and optimised torque control because of 5 transition zones
- Low friction due to inner PTFE liner
- Soft, rounded, flexible and preshaped tip (25° multi-purpose) allows easy and atraumatic vessel selection
- Push-torque-navigate braiding technology for excellent torquability
- Overall increased kink and ovalisation resistance due to special braiding construction
Description
NeuroBridge® Catheter
Disclaimer:
Please consult the Instructions for Use for all indications, contraindications, warnings, cautions as well as possible adverse effects. Acandis® products are to be used exclusively by trained medical professionals. Orders are taken only in regions where the product is approved. Please contact an Acandis® representative for product availability.
Specification
| Product Name | Reference Number | ID (inch) |
OD dist (French / Inch) | OD prox. (French/ Inch) | Usable Length (cm) | Total Length (cm) | Tip Shape |
|---|---|---|---|---|---|---|---|
| NeuroBridge 39 | 01-000508 | 0.039 | 3.9/0.051 | 4.2/0.055 | 125 | 131 | Multi-Purpose 25 |
| 01-000509 | 0.039 | 3.9/0.051 | 4.2/0.055 | 135 | 141 | Multi-Purpose 25 | |
| 01-000510 | 0.039 | 3.9/0.051 | 4.2/0.055 | 145 | 151 | Multi-Purpose 25 | |
| NeuroBridge 52 | 01-000511 | 0.052 | 5.0/0.066 | 5.3/0070 | 115 | 121 | Multi-Purpose 25 |
| 01-000512 | 0.052 | 5.0/0.066 | 5.3/0070 | 125 | 131 | Multi-Purpose 25 | |
| 01-000513 | 0.052 | 5.0/0.066 | 5.3/0070 | 135 | 141 | Multi-Purpose 25 | |
| NeuroBridge 65 | 01-000514 | 0.065 | 6.1/0.080 | 6.3/0.083 | 115 | 121 | Multi-Purpose 25 |
| 01-000515 | 0.065 | 6.1/0.080 | 6.3/0.083 | 125 | 131 | Multi-Purpose 25 |
