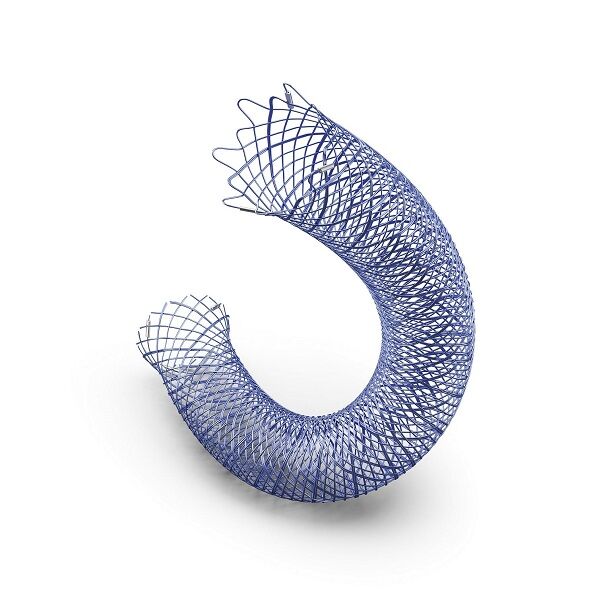

DERIVO® and DERIVO® mini Embolisation Device
Manufacturer: ACANDIS
Category: Treatment of intracranial aneurysms
- Unique X-ray visibility
- Perfect vessel wall adaptability
- Broad range of sizes for tailored treatment options
- Treatment of vessel diameters from 1.5 – 6.0 mm
- Up to 3.5 mm device diameter deliverable through 0.021” ID microcatheters
- True self-expansion
- Resheathability
- 3D Sizing Simulation
Description
DERIVO® and DERIVO® mini Embolisation Device
Clinical Experience
Treatment of large right ICA aneurysm with DERIVO® Embolisation Device 4.0 mm x 30 mm
Images are courtesy by Dr. Sascha Prothmann, Klinikum rechts der Isar, Technical University Munich, German
Disclaimer:
Please consult the Instructions for Use for all indications, contraindications, warnings, cautions as well as possible adverse effects. Acandis® products are to be used exclusively by trained medical professionals. Orders are taken only in regions where the product is approved. Please contact an Acandis® representative for product availability.
Specification
DERIVO
| Labelled DERIVO Diameter (mm) | Labelled DERIVO Length (mm) | Reference Number | Recommended Vessel Diameter (mm) | Required Microcatheter for Delivery (inch) |
|---|---|---|---|---|
| 3.5 | 15 | 01-000408 | 2.5 – 3.5 | 0.027 |
| 20 | 01-000409 | |||
| 25 | 01-000410 | |||
| 30 | 01-000411 | |||
| 40 | 01-000415 | |||
| 4.0 | 15 | 01-000381 | 3.0 – 4.0 | |
| 20 | 01-000330 | |||
| 25 | 01-000335 | |||
| 30 | 01-000340 | |||
| 40 | 01-000360 | |||
| 4.5 | 15 | 01-000382 | 3.5 – 4.5 | |
| 20 | 01-000331 | |||
| 25 | 01-000336 | |||
| 30 | 01-000341 | |||
| 40 | 01-000361 | |||
| 5.0 | 15 | 01-000383 | 4.0 – 5.0 | |
| 20 | 01-000332 | |||
| 25 | 01-000337 | |||
| 30 | 01-000342 | |||
| 40 | 01-000362 | |||
| 50 | 01-000363 | |||
| 5.5 | 15 | 01-000384 | 4.5 – 5.5 | |
| 20 | 01-000333 | |||
| 25 | 01-000338 | |||
| 30 | 01-000343 | |||
| 40 | 01-000364 | |||
| 50 | 01-000365 | |||
| 6.0 | 15 | 01-000385 | 5.0 – 6.0 | |
| 20 | 01-000334 | |||
| 25 | 01-000339 | |||
| 30 | 01-000344 | |||
| 40 | 01-000366 | |||
| 50 | 01-000367 |
DERIVO mini
| Labelled DERIVO mini Dimensions (mm) | Reference Number | Device Diameter (mm) | Device Length (mm) | Recommended Vessel Diameter (mm) | Required Microcatheters for Delivery (Inch) |
|---|---|---|---|---|---|
| 2.5 x 15 | 01-000428 | 2.5 | 15 | 1.5 – 2.5 | 0.021 |
| 2.5 x 20 | 01-000429 | 2.5 | 20 | 1.5 – 2.5 | 0.021 |
| 2.5 x 20 w/o tip | 01-000432 | 2.5 | 20 | 1.5 – 2.5 | 0.021 |
| 2.5 x 25 | 01-000430 | 2.5 | 25 | 1.5 – 2.5 | 0.021 |
| 2.5 x 25 w/o tip | 01-000433 | 2.5 | 25 | 1.5 – 2.5 | 0.021 |
| 3.0 x 15 | 01-000422 | 3.0 | 15 | 2.0 – 3.0 | 0.021 |
| 3.0 x 20 | 01-000423 | 3.0 | 20 | 2.0 – 3.0 | 0.021 |
| 3.0 x 20 w/o tip | 01-000426 | 3.0 | 20 | 2.0 – 3.0 | 0.021 |
| 3.0 x 25 | 01-000424 | 3.0 | 25 | 2.0 – 3.0 | 0.021 |
| 3.0 x 25 w/o tip | 01-000427 | 3.0 | 25 | 2.0 – 3.0 | 0.021 |
| 3.5 x 15 | 01-000416 | 3.5 | 15 | 2.5 – 3.5 | 0.021 |
| 3.5 x 20 | 01-000417 | 3.5 | 20 | 2.5 – 3.5 | 0.021 |
| 3.5 x 20 w/o tip | 01-000420 | 3.5 | 20 | 2.5 – 3.5 | 0.021 |
| 3.5 x 25 | 01-000418 | 3.5 | 25 | 2.5 – 3.5 | 0.021 |
| 3.5 x 25 w/o tip | 01-000421 | 3.5 | 25 | 2.5 – 3.5 | 0.021 |
